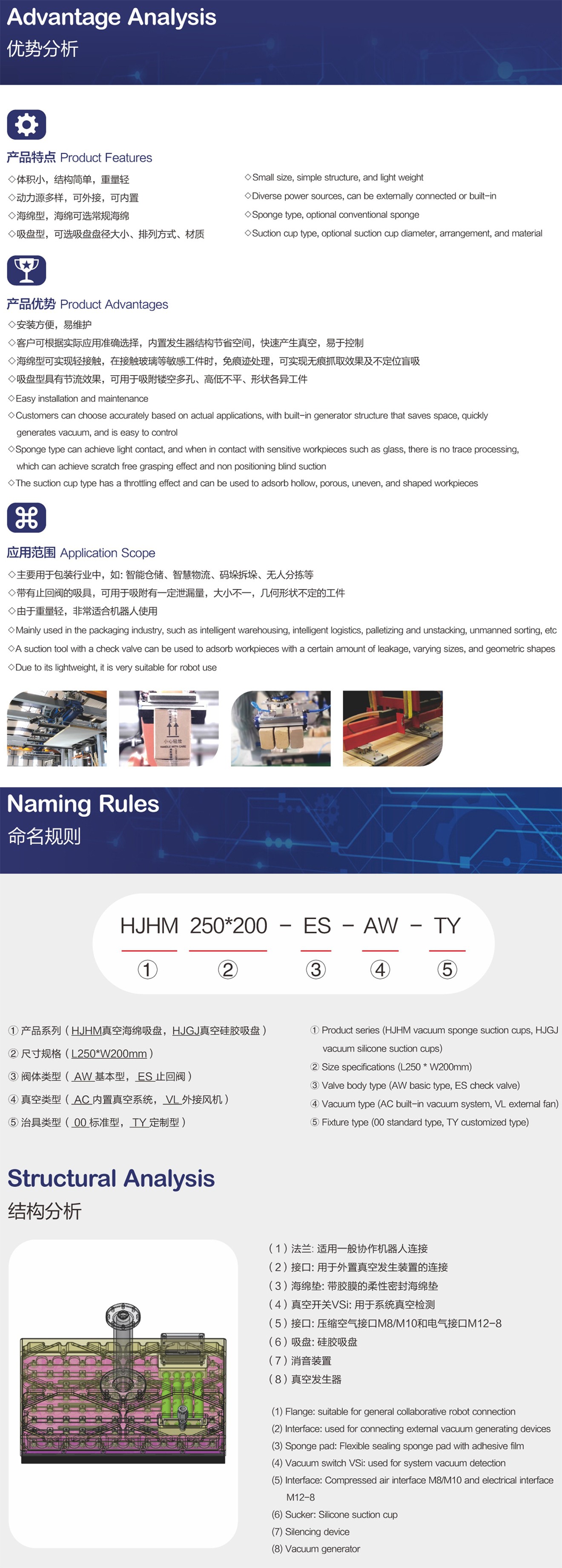

O产品应用Product Application
◇主要用于包装行业中,如:智能仓储、智慧物流、码垛拆垛、无人分拣等
◇带有止回阀的吸具,可用于吸附有一定泄漏量,大小不一,几何形状不定的工件
◇由于重量轻,非常适合机器人使用
O技术参数Technical Parameter
产品型号 | 供气压力MPA | 最大真空流量NL/min | 空气耗气量NL/min | 工作温度 ℃ | 供气口径(mm) | 推荐风机流量m*h | 风管接头口径mm | 适合纸箱尺寸(mm) | 最大可吸取重量(kg) | 单重(kg) |
H JHM 250*200-AW-AC-00 | 0.5-0.8 | 800 | 250-350 | 0-60 | G1/4 |
|
| L:150-300W:200-300 | 10 | 3 |
H JHM 380*260-AW-AC-00 | 0.5-0.8 | 1030 | 350-450 | 0-60 | G1/4 |
|
| L:300-500W:200-400 | 20 | 4.2 |
H JHM 520*260-AW-AC-00 | 0.5-0.8 | 1500 | 550-650 | 0-60 | G1/4 |
|
| L:300-500W:200-400 | 25 | 6 |
H JHM 250*200-AW-VL-00 |
|
|
|
|
| 200 | 32 | L:150-300W:200-300 | 10 | 3 |
H JHM 380*260-AW-VL-00 |
|
|
|
|
| 300 | 50 | L:300-500W:200-400 | 20 | 4.2 |
H JHM 520*260-AW-VL-00 |
|
|
|
|
| 400 | 50 | L:300-500W:200-400 | 25 | 6 |
H JHM 250*200-ES-AC-00 | 0.5-0.8 | 1460 | 250-350 | 0-60 | G1/4 |
|
| L:150-300W:200-300 | 10 | 3 |
H JHM 380*260-ES-AC-00 | 0.5-0.8 | 1801 | 350-450 | 0-60 | G1/4 |
|
| L:300-500W:200-400 | 20 | 4.2 |
H JHM 520*260-ES-AC-00 | 0.5-0.8 | 2105 | 550-650 | 0-60 | G1/4 |
|
| L:300-500W:200-400 | 25 | 6 |
H JHM 130*180-AW-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:200-300W:150-300 | 10 | 2 |
H JHM 130*280-AW-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:300-400W:150-300 | 12 | 3 |
H JHM 130*380-AW-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:400-500W:150-300 | 15 | 3.5 |
H JHM 130*580-AW-AC-00 | 0.5-0.8 | 730 | 330-450 | 0-60 | G1/4 |
|
| L:500-700W:150-300 | 17 | 4 |
H JHM 130*780-AW-AC-00 | 0.5-0.8 | 1080 | 330-450 | 0-60 | G1/4 |
|
| L:500-900W:150-300 | 19 | 5 |
H JHM 130*980-AW-AC-00 | 0.5-0.8 | 1080 | 500-750 | 0-60 | G1/4 |
|
| L:500-1100W:150-300 | 20 | 6 |
H JHM 130*1180-AW-AC-00 | 0.5-0.8 | 1460 | 500-750 | 0-60 | G1/4 |
|
| L:500-1300W:150-300 | 25 | 7 |
H JHM 130*180-AW-VL-00 |
|
|
|
|
| 200 | 32 | L:200-300W:150-300 | 10 | 2 |
H JHM 130*280-AW-VL-00 |
|
|
|
|
| 200 | 32 | L:300-400W:150-300 | 12 | 3 |
H JHM 130*380-AW-VL-00 |
|
|
|
|
| 200 | 32 | L:400-500W:150-300 | 15 | 3.5 |
H JHM 130*580-AW-VL-00 |
|
|
|
|
| 200 | 32 | L:500-700W:150-300 | 17 | 4 |
H JHM 130*780-AW-VL-00 |
|
|
|
|
| 400 | 50 | L:500-900W:150-300 | 19 | 5 |
H JHM 130*980-AW-VL-00 |
|
|
|
|
| 400 | 50 | L:500-1100W:150-300 | 20 | 6 |
H JHM 130*1180-AW-VL-00 |
|
|
|
|
| 400 | 50 | L:500-1300W:150-300 | 25 | 7 |
H JHM 130*180-ES-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:200-300W:150-300 | 10 | 2 |
H JHM 130*280-ES-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:300-400W:150-300 | 12 | 3 |
H JHM 130*380-ES-AC-00 | 0.5-0.8 | 730 | 220-300 | 0-60 | G1/4 |
|
| L:400-500W:150-300 | 15 | 3.5 |
H JHM 130*580-ES-AC-00 | 0.5-0.8 | 730 | 330-450 | 0-60 | G1/4 |
|
| L:500-700W:150-300 | 17 | 4 |
H JHM 130*780-ES-AC-00 | 0.5-0.8 | 1080 | 330-450 | 0-60 | G1/4 |
|
| L:500-900W:150-300 | 19 | 5 |
H JHM 130*980-ES-AC-00 | 0.5-0.8 | 1080 | 500-750 | 0-60 | G1/4 |
|
| L:500-1100W:150-300 | 20 | 6 |
H JHM 130*1180-ES-AC-00 | 0.5-0.8 | 1460 | 500-750 | 0-60 | G1/4 |
|
| L:500-1300W:150-300 | 25 | 7 |
